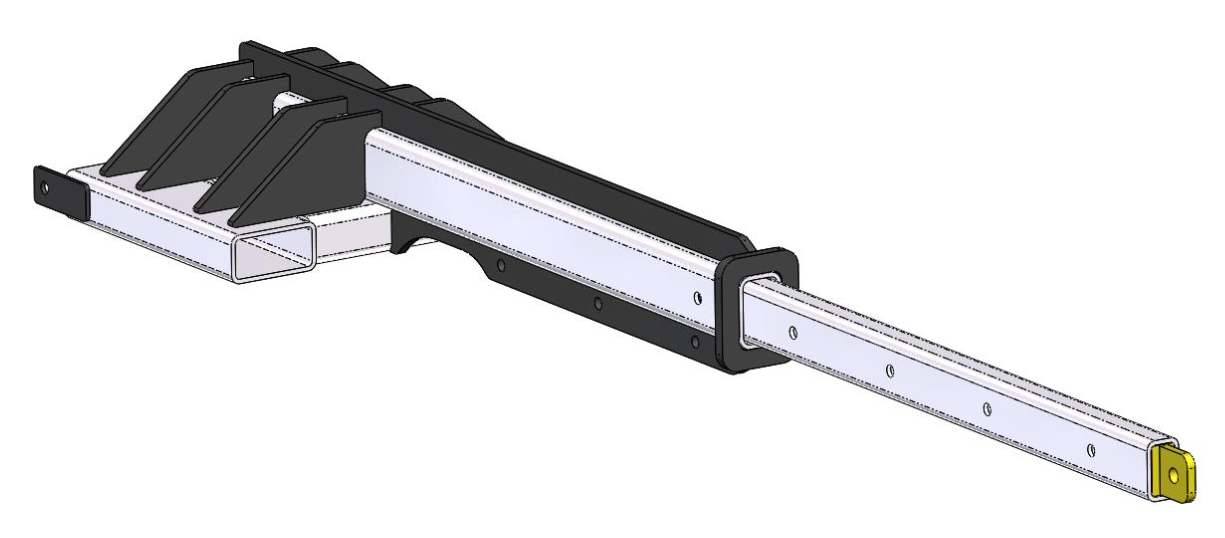

- HEAVY DUTY FORKLIFT JIB TO EXTEND THE CAPABILITIES OF YOUR FORKLIFT / TELEHANDLER / EXTENDABLE REACH EQUIPMENT
- Almost infinite applications:
- reach over or under obstructions to place heavy loads
- set equipment on the roof or elevated decks
- reach through narrow openings such as windows to set or pick up a load
- load and unload trucks easier and more safely
- reach into motor freight vans to load or unload materials and equipment
- load, move, and handle equipment in your equipment yard
- reach over scaffold to set stone or other heavy masonry units
- hang trusses and laminated wood beams
- etc.
- Universal fit design
- Swivel hook included
- Telescoping two section tubular steel boom
- Manually telescopes from 6,6' to 11,3' with 8 hook attachment positions (2,8' to 11,3')
- Complies with the following standards and certifications: Safety Code for Construction Work, CSA-B335 and ANSI / ASME B56.6
| Position | 8 (34") | 7 (48") | 6 (62") | 5 (80") | 4 (95") | 3 (109") | 2 (123") | 1 (136") |
|
Maximum Load (kg / lbs) |
2,609 / 5,752 | 1,826 / 4,026 | 1,357 / 2,992 | 1,148 / 2,531 | 919 / 2,026 | 749 / 1,651 | 648 / 1,429 | 576 / 1,270 |
